AUTO REBAR BENDING|TBS-13-6-NCV

  • AUTO REBAR BENDING
  • Bar (Small)
  • Reduce manpower
  • Mass production
  • Rebar fabrication
  • Precast concrete
Model TBS-13-6-NCV
Capacity SD345: D10-8 ~ D16-3
SD390: D10-8 ~ D16-2
Required breaker capacity 50A
Bending unit revolution MAX9.5rpm

Details

・TLINKS-V spec model: shipping from Jul.2021

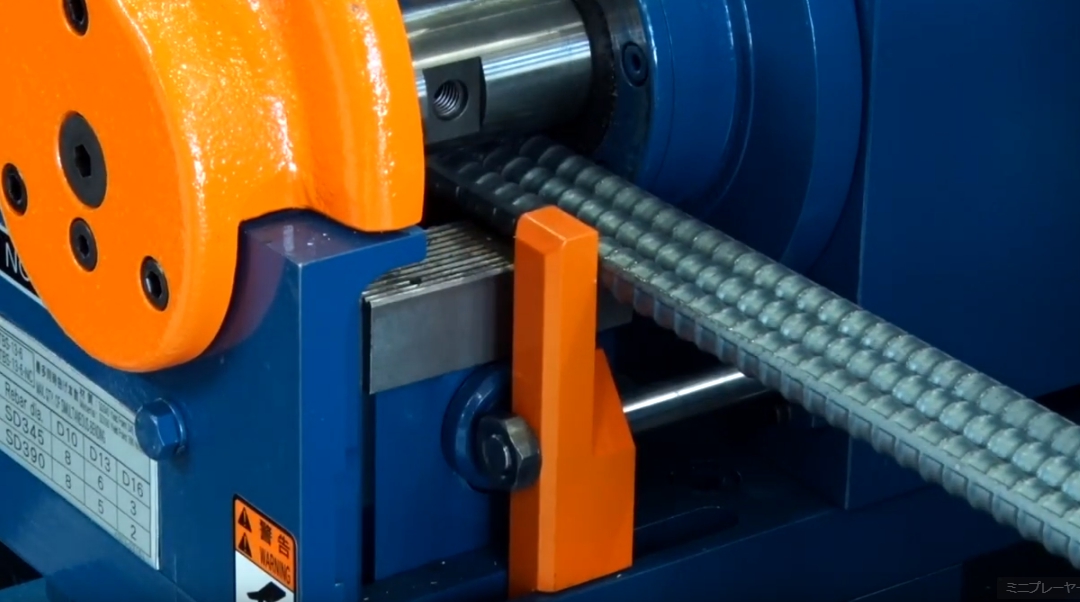

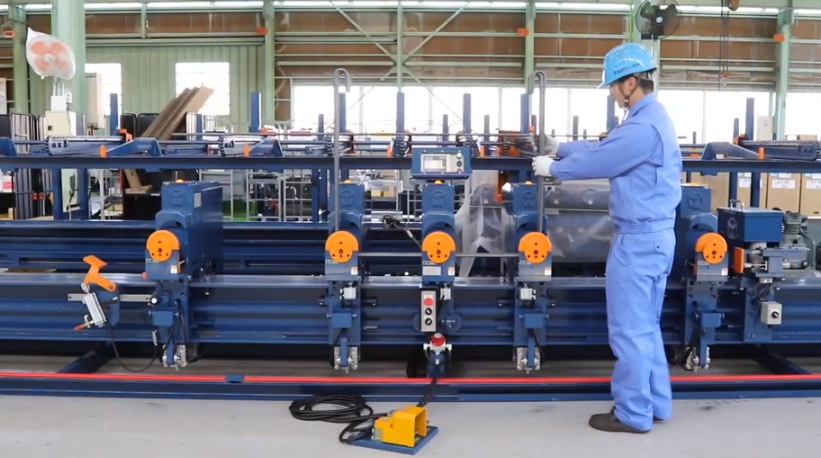

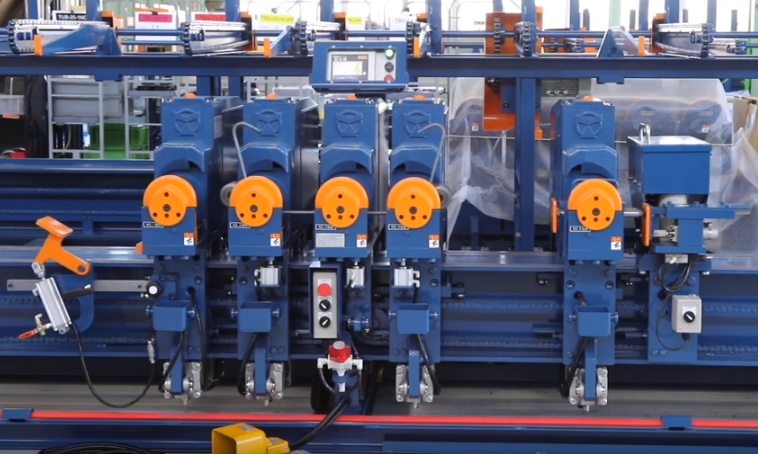

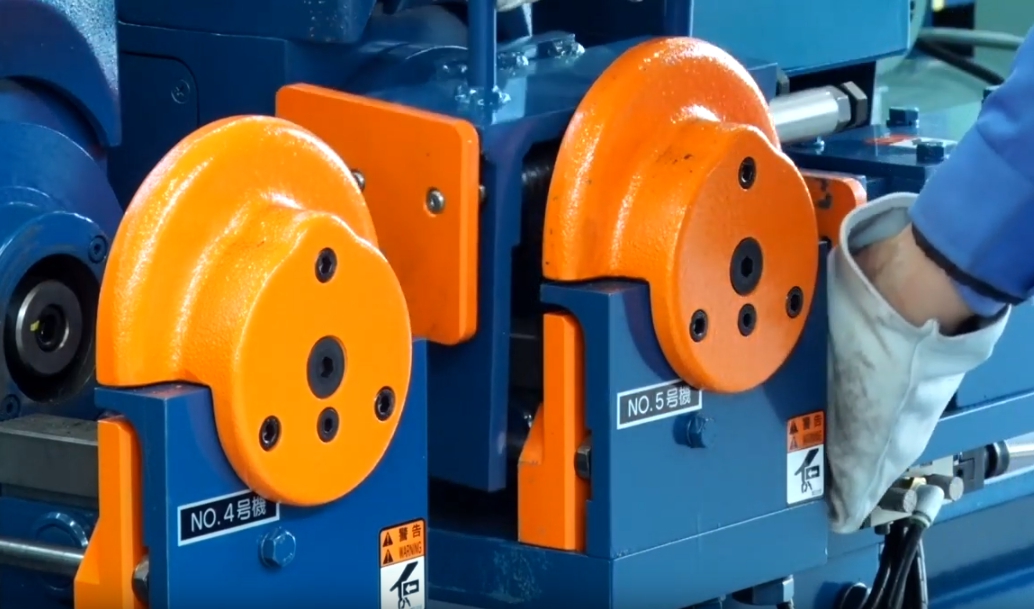

・TBS-13-6-NCV is an automatic rebar bending machine which is exclusively for bending D10~D16 with multiple angles.
・TBS-13-6-NCV is most suitable for bending closed stirrups & stirrups with multiple angles.

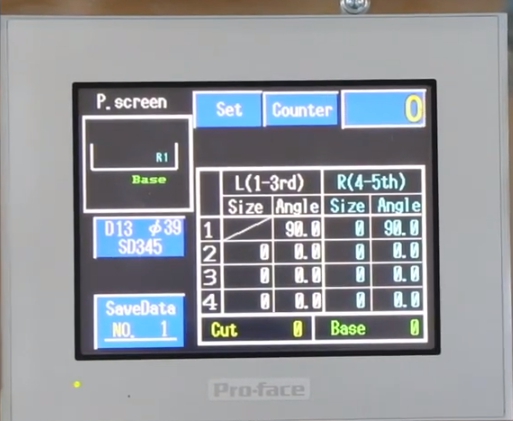

・Shapes, dimensions and angles can be easily set on the user-friendly touch screen.

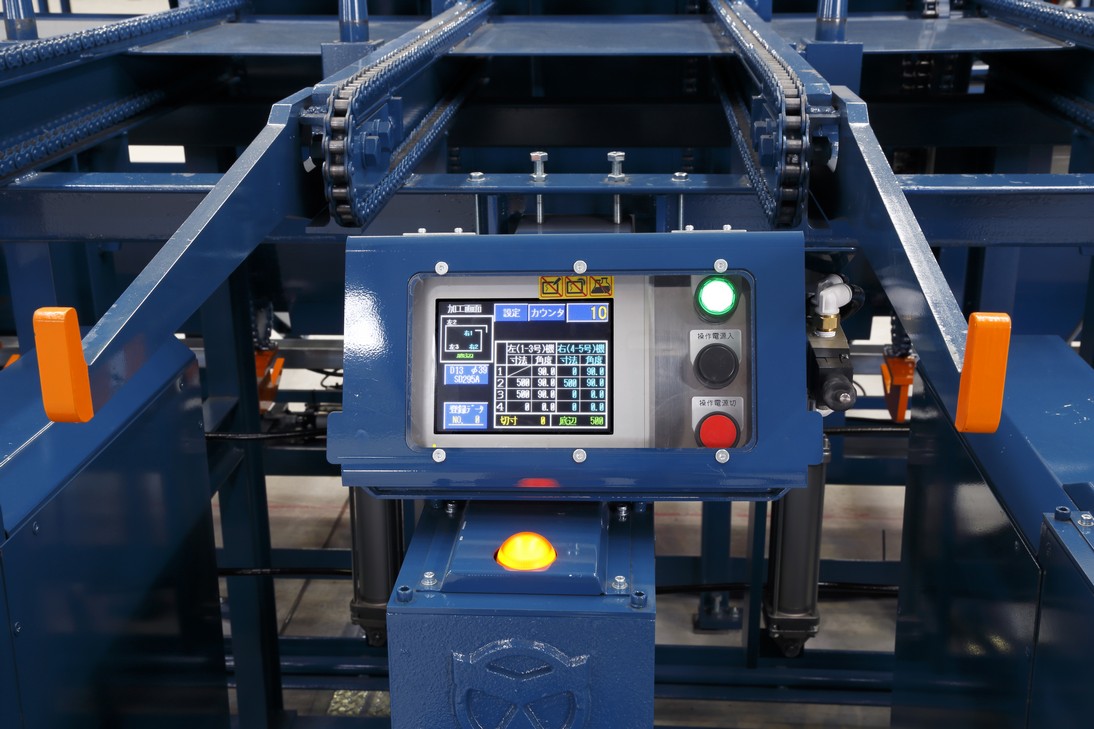

・Touch screen is placed in the middle of the machine, which makes work process change efficiently.
・Number counter device is built-in, which is capable of counting q’ty of rebar mechanically.
・With the numeric control, it is not necessary to measure dimensions manually.
・Bending speed change function is available.
