|Capacity||SD390： D10-9 ～ D25-1
SD490： D10-9 ～ D25-1
SD785： D10-8 ～ D16-3
|Required breaker capacity||50A|
|Bending unit revolution||2.5～7.5rpm|
・TBS-25-NC4RV is an automatic rebar bending machine which is for bending high-strength rebar (SD785 D10-D16, SD490 D10-D25).
・TBS-25-NC4RV is most suitable for bending closed stirrups, railway construction and building construction.

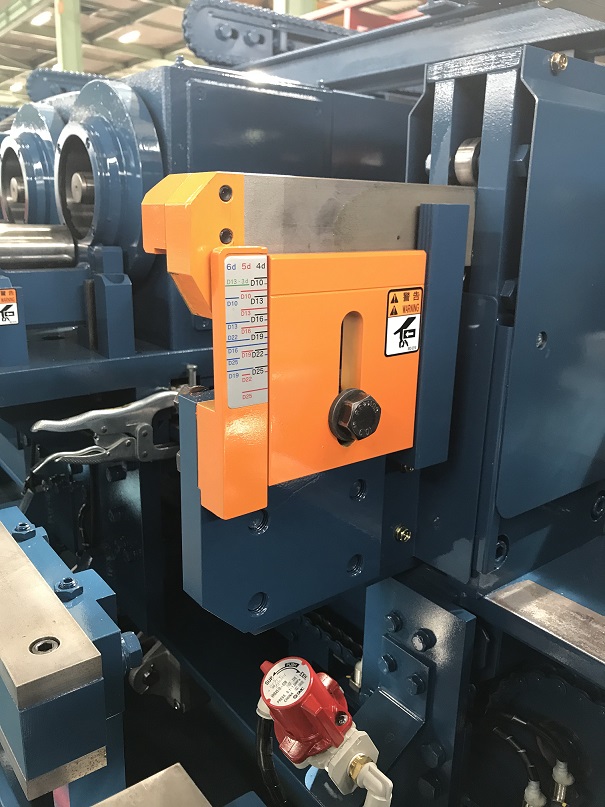

・Chucking device grabs rebar, which raises the dimension accuracy of finished products.

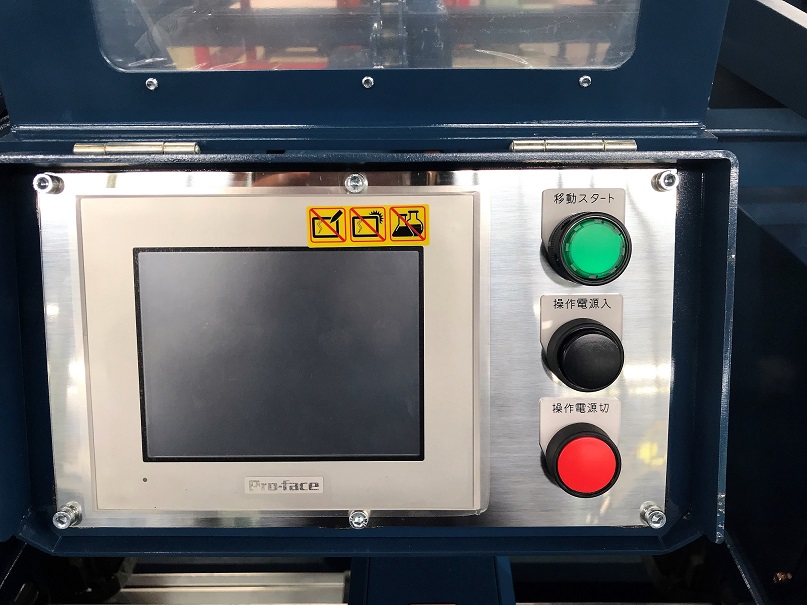

・Shapes, dimensions and angles can be easily set on the user-friendly touch screen.
・Touch screen is placed in the middle, which raises working efficiency.
・Taking material grade into consideration, inverter is equipped in order to raise the bending accuracy.
・Number counter device is built-in, which is capable of counting q’ty of rebar mechanically.
・With the numeric control, it is not necessary to measure dimensions manually.
・Bending speed change function is available.”
