AUTO REBAR CUTTING|TFC-M-H

  • AUTO REBAR CUTTING
  • Bar (Small)
  • Bar (Large)
  • Reduce manpower
  • High strength rebar processing
  • Noiseless spec.
  • Rebar fabrication
  • Precast concrete
Model TFC-M-H
Capacity SD390: D10-16 ~ D38-1
SD490: D10-16 ~ D38-1
Required breaker capacity 75A
Cutting blade width 190mm

Details

・When you consider automation into rebar cutting, let us introduce TFC-M-H.
・TFC-M-H turns the hard work of material handling and discharging into an automatic way.

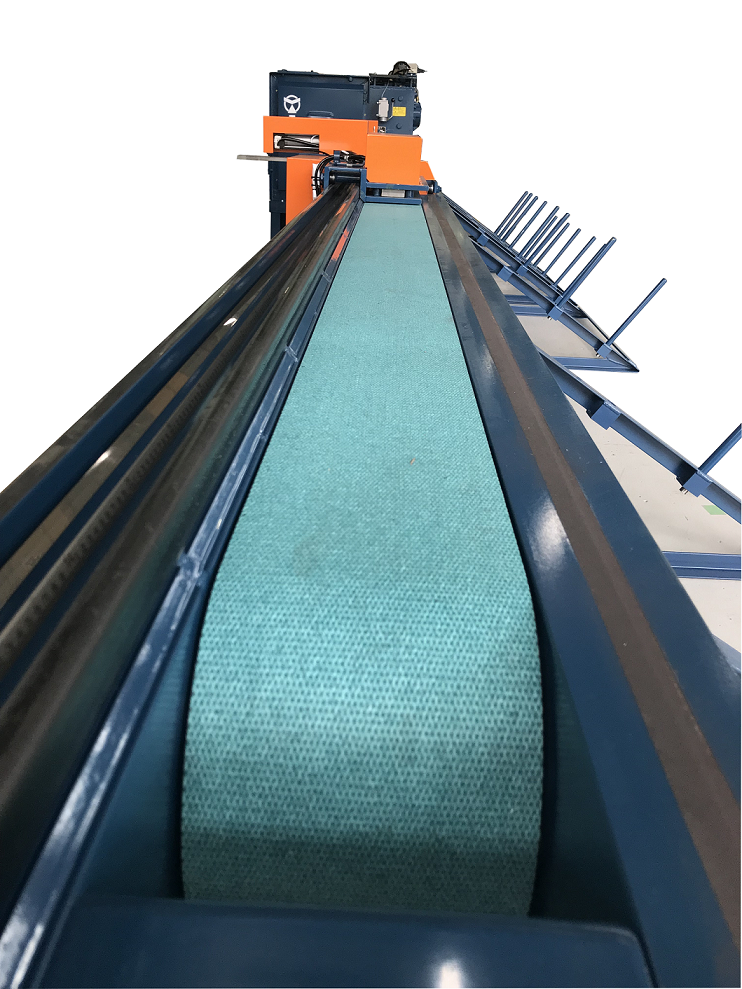

・TFC-M-H is equipped with a special conveyor, which reduces the noise in feeding material.
・Rebar cutter Model : MC-51 is equipped.
※TFC-M-H is capable of cutting up to D38 with SD490(Yield Point: 490-625N/mm2, Tensile Strength≧620N/mm2).

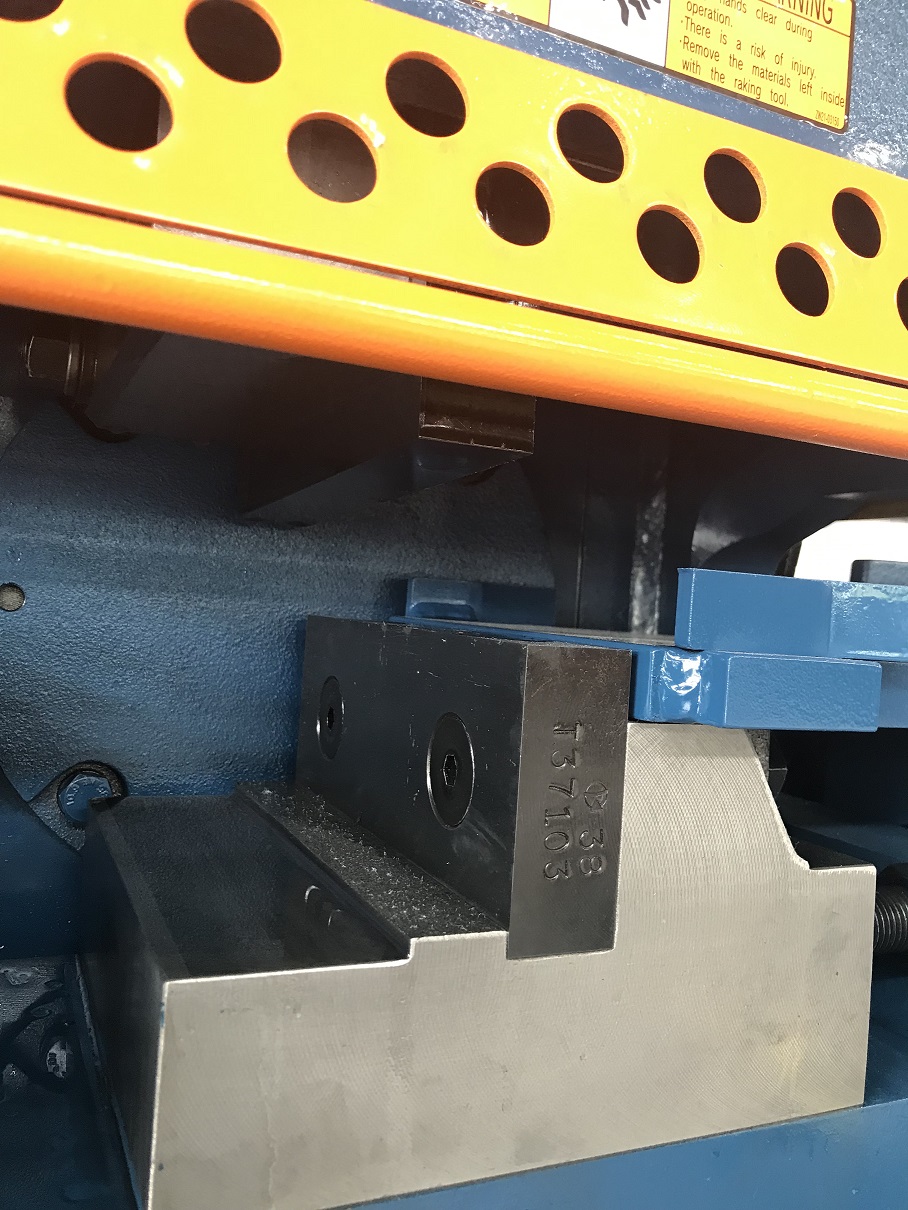

・Cutting blade width is 190mm, which enables you to cut 10 pieces of D10 at at time.
・3 types of conveyor length are available; 8m(Feed-out side)x 9m (Feed-in side), 10mx 10m, 12mx 12m. “
