AUTO REBAR CUTTING|CS-185HB

  • AUTO REBAR CUTTING
  • Bar (Small)
  • Bar (Large)
  • Reduce manpower
  • High strength rebar processing
  • Noiseless spec.
  • Rebar fabrication
  • Precast concrete
Model CS-185HB
Capacity SD390:D10-16~D38-1
SD490:D10-16~D38-1
Required breaker capacity 75A
Cutting blade width 190mm

Details

・CS-185HB is an automatic rebar cutting machine, which is capable of combination cutting 2 kinds of length from raw materials.
・CS-185HB turns the hard work of material handling and discharging into an automatic way.
・CS-185HB is equipped with a special conveyor, which reduces the noise in feeding material.
・Rebar cutter Model : MC-51 is equipped.
※CS-185HB is capable of cutting up to D38-SD490(Yield Point: 490-625N/mm2, Tensile Strength≧620N/mm2).
・Length to cut can be set by 1mm.

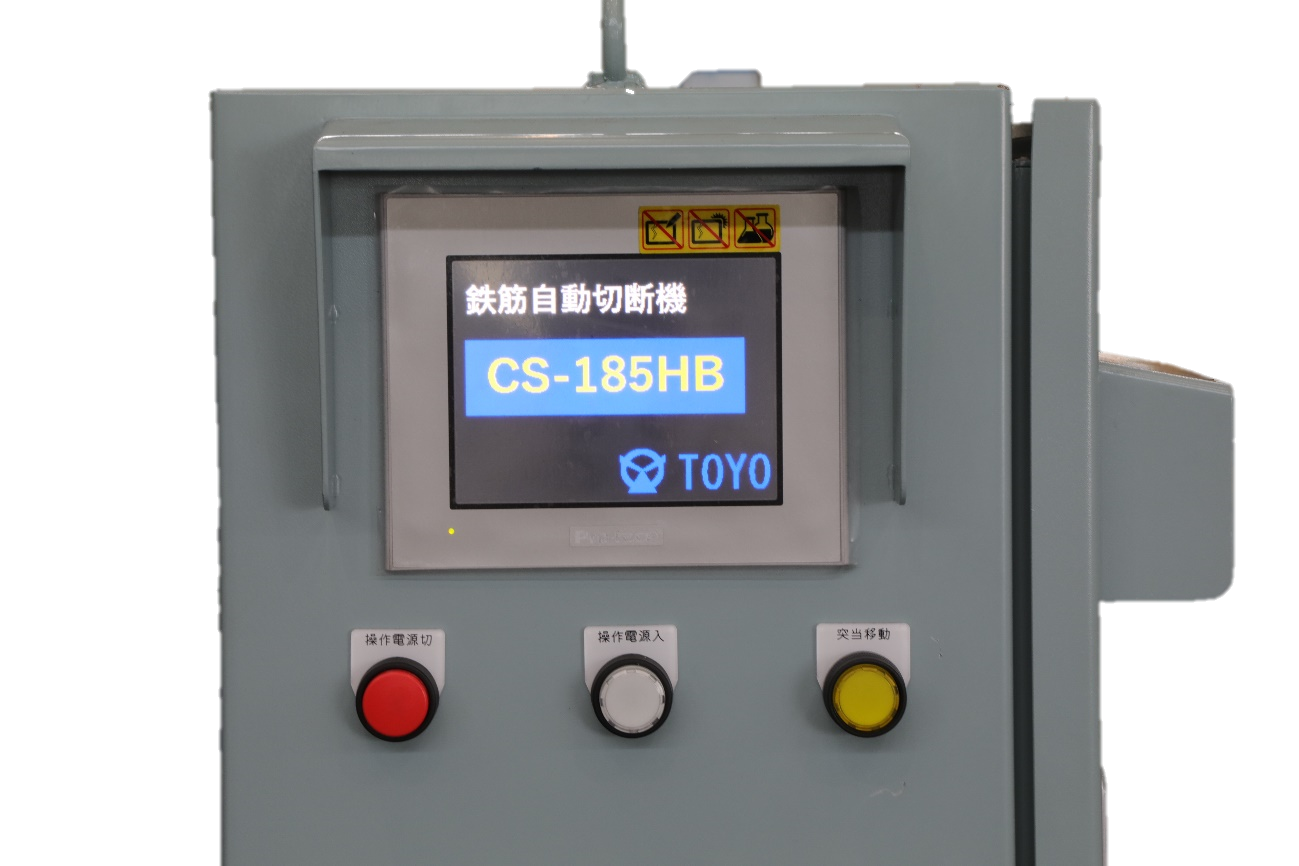

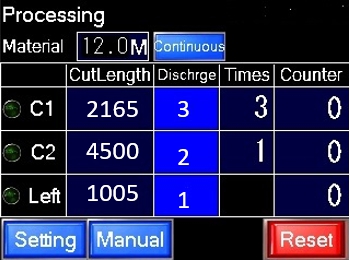

・Data can be input into a user-friendly touch panel.
・Cutting blade width is 190mm, which enables you to cut 16 pieces of D10 at at time.
・3 types of conveyor length are available; 8m(Feed-out side)x 9m (Feed-in side), 10mx 10m, 12mx12m. ”
