|Capacity||SD390： D16-3 ～ D38-1
SD490： D16-3 ～ D32-1
|Required breaker capacity||60A|
|Bending unit revolution||7.6／9.2rpm (50/60Hz)|

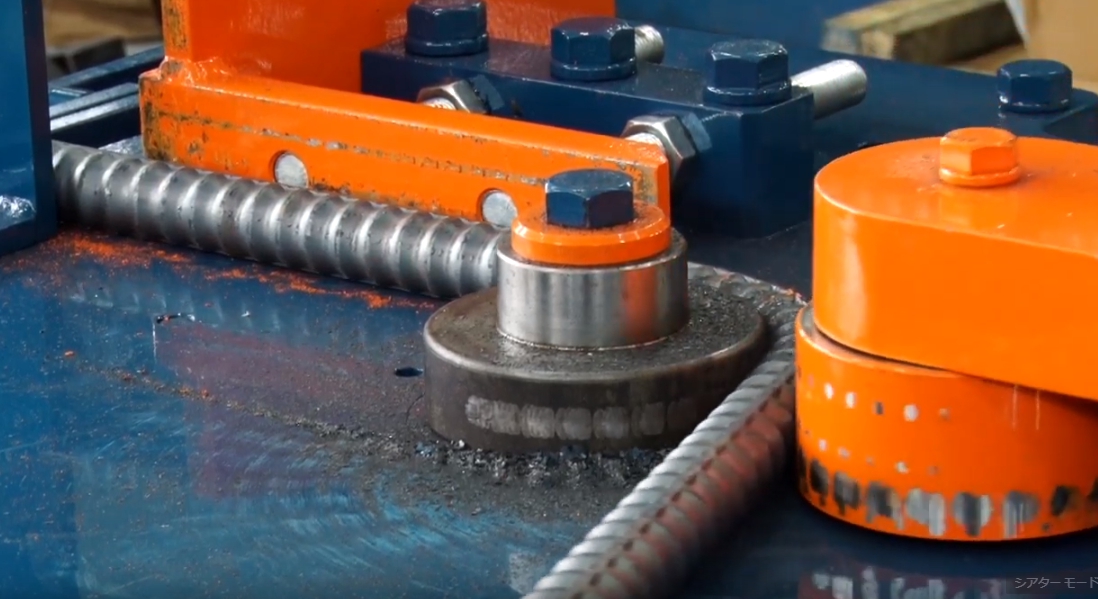

・TWB-40SNⅡis suitable for bending single anchors and double anchors of D16～D38.
※It is possible to bend double anchors of D38-SD390. (Yield Point: 390-510N/mm2, Tensile Strength≧560N/mm2)

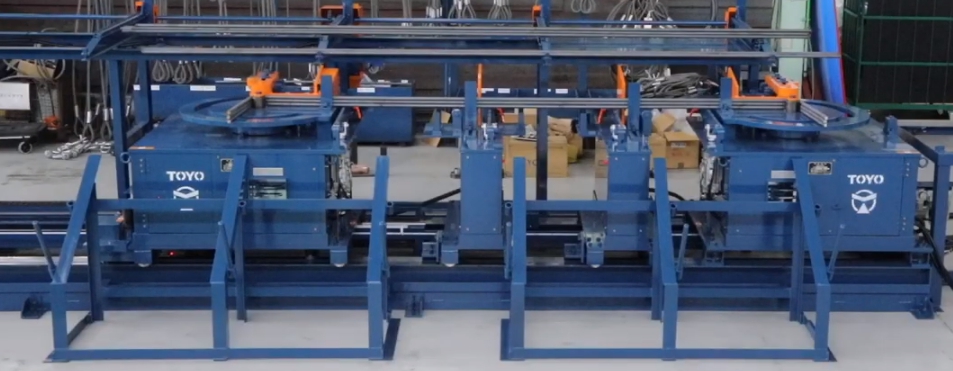

・Material is automatically supplied while finished products can be discharged by the lifts.
・One operator is enough to carry out bending long length rebars.

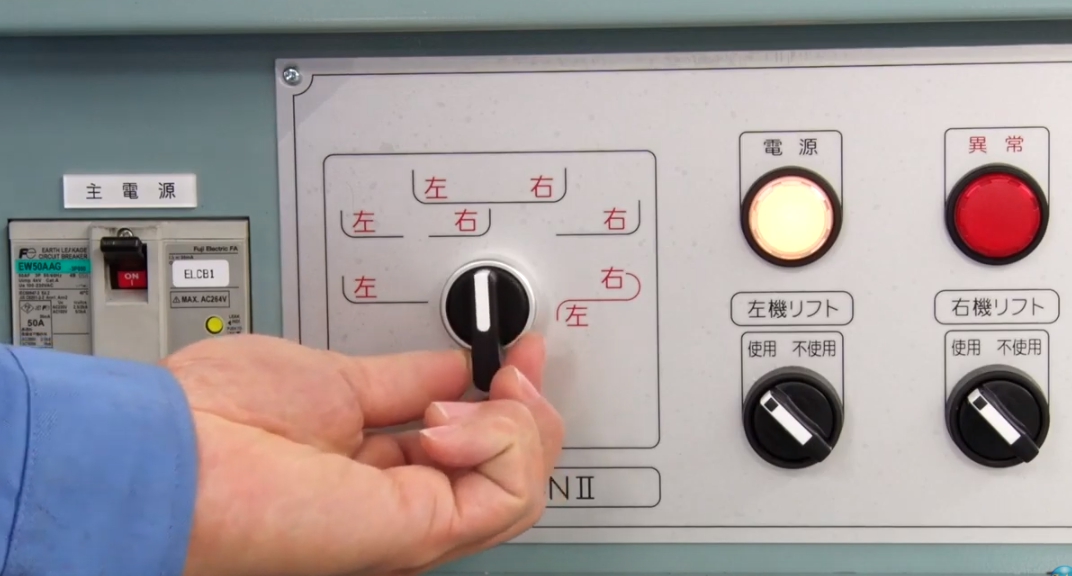

・2 kinds of angles can be set by dial type of setting.”
