AUTO REBAR CUTTING｜TFC-M
- AUTO REBAR CUTTING
- Bar (Small)
- Bar (Large)
- Reduce manpower
- Mass production
- High strength rebar processing
- Rebar fabrication
- Precast concrete
| Model | TFC-M |
|---|---|
| Capacity | SD345： D10-18 ～ D41-1 SD390： D10-18 ～ D41-1 SD490： D10-18 ～ D41-1 |
| Required breaker capacity | 100A |
| Cutting blade width | 225mm |
Details

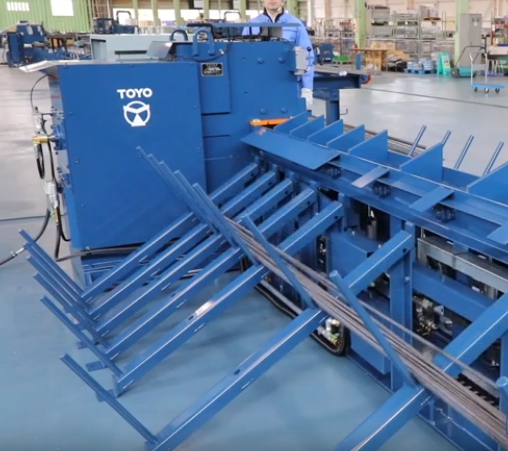

・TFC-M is an automatic rebar cutting machine, which is capable of cutting and storing rebar in large quanity.

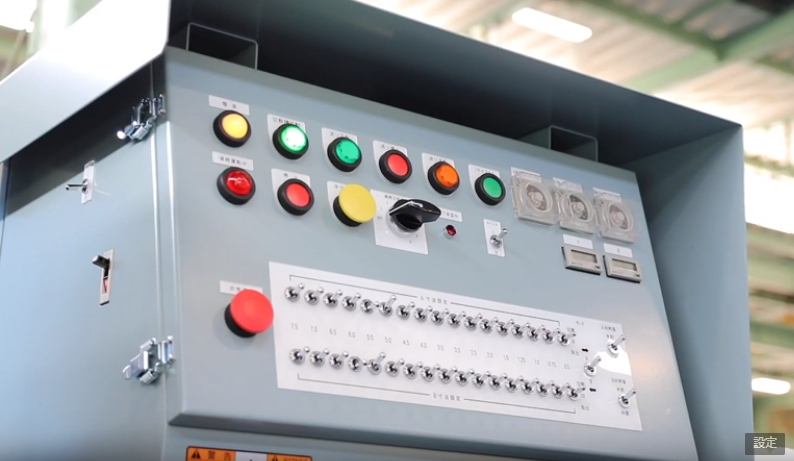

・Length to cut and where to discharge after-cut-bars can be set by toggle switches.
・Combination cutting of 2 kinds of length can be done from raw materials.
・3 types of conveyor length are available; 8m(Feed-out side)x 9m (Feed-in side), 10mx 10m, 12mx 12m.
・Cutting blade width is 225mm, which enables you to cut 18 pieces of D10 at at time.”
