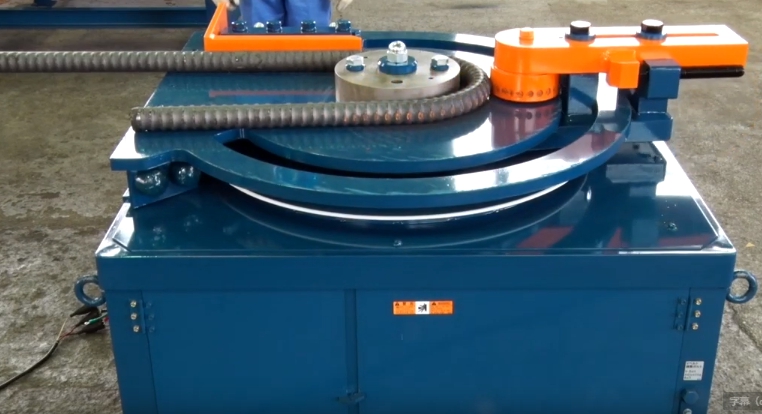

DIAL-TYPE REBAR BENDER｜ B-52S
- REBAR BENDER
| Model | B-52S |
|---|---|
| Capacity | SD390： D25-2 ～ D51-1 SD490： D25-2 ～ D51-1 |
| Required breaker capacity | 60A |
| Bending unit revolution | 4.5／5.4rpm (50/60Hz) |
Details

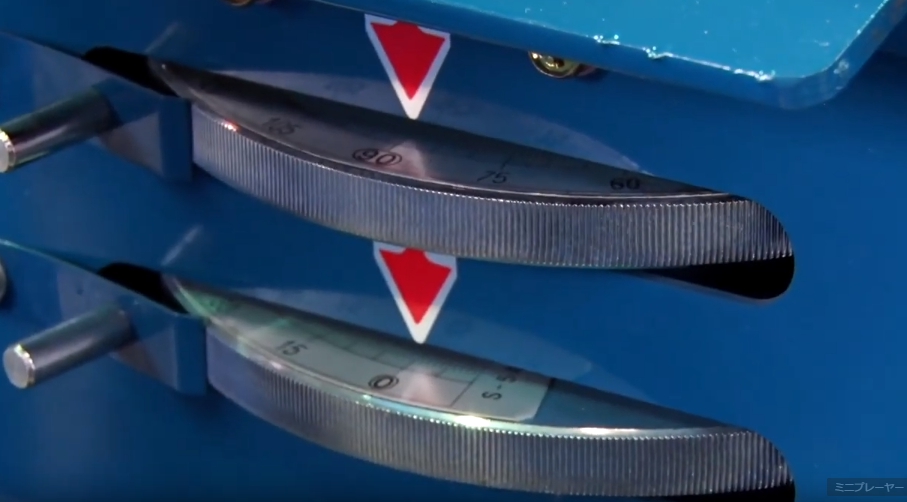

・Angle is set by dials.

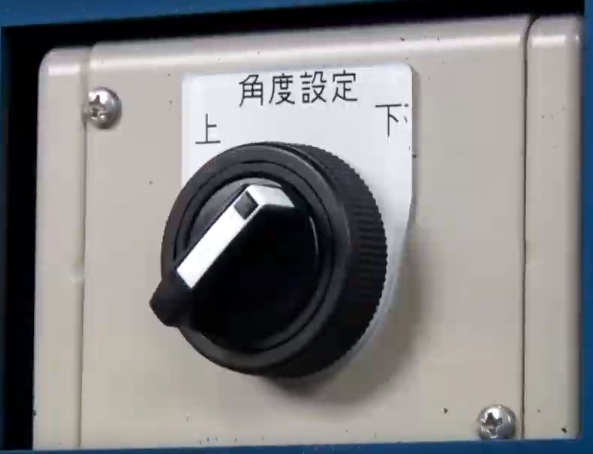

・It is possible to set 2 kinds of angle at the maximum. (Automatic bending angle stepping function is not built-in)
・B-52S is capable of bending up to D51-SD490(Yield Point: 490-625N/mm2, Tensile Strength≧620N/mm2).
・Standard product has fulcrum roller for 6d bending radius.
・Fulcrum roller and power point roller for large radius and fulcrum roller for 5d/6d/8d are optional.
・Diameter of large radius (Φ250・300・400・500・600･700･800･900･1000) are optional.
