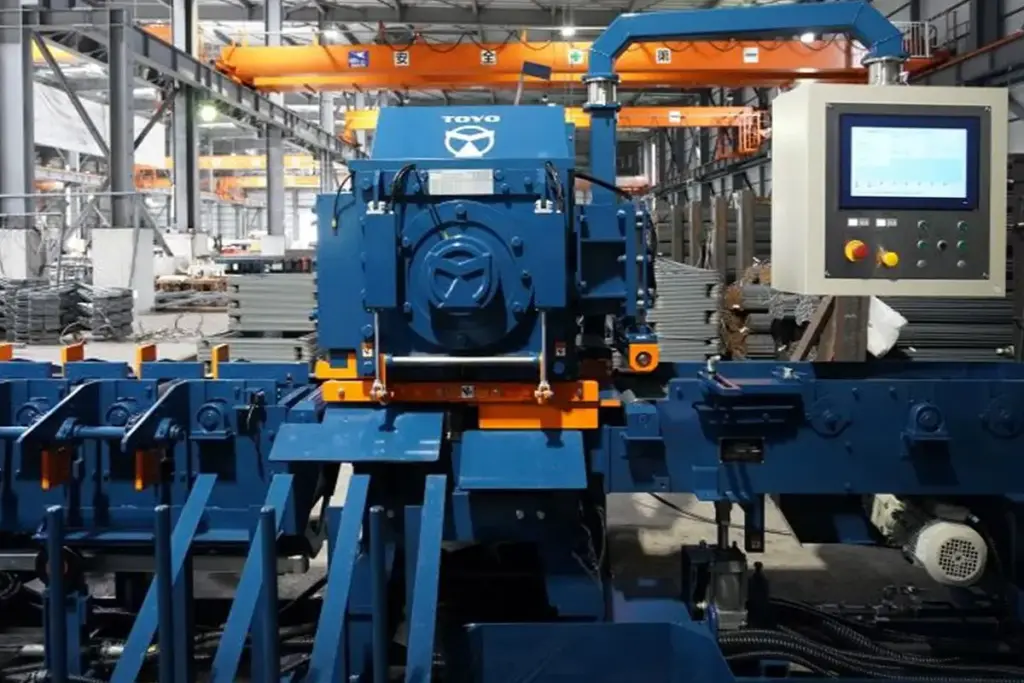

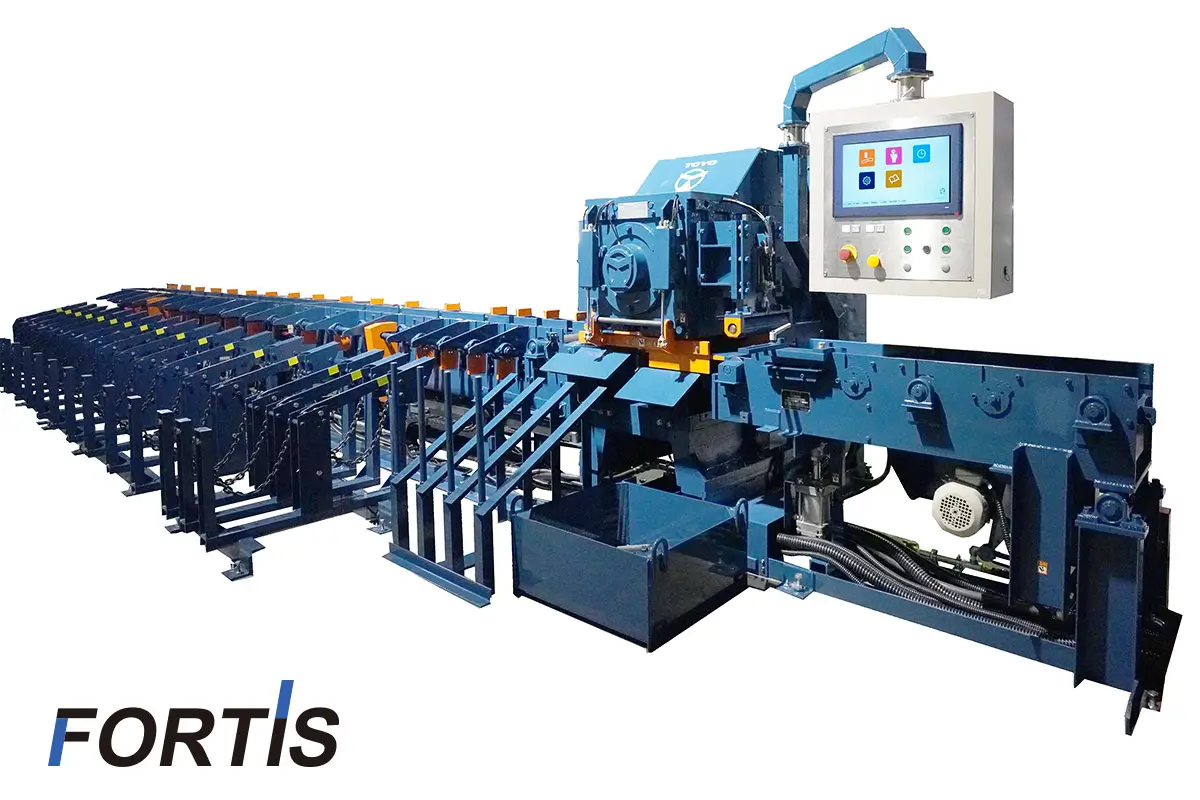

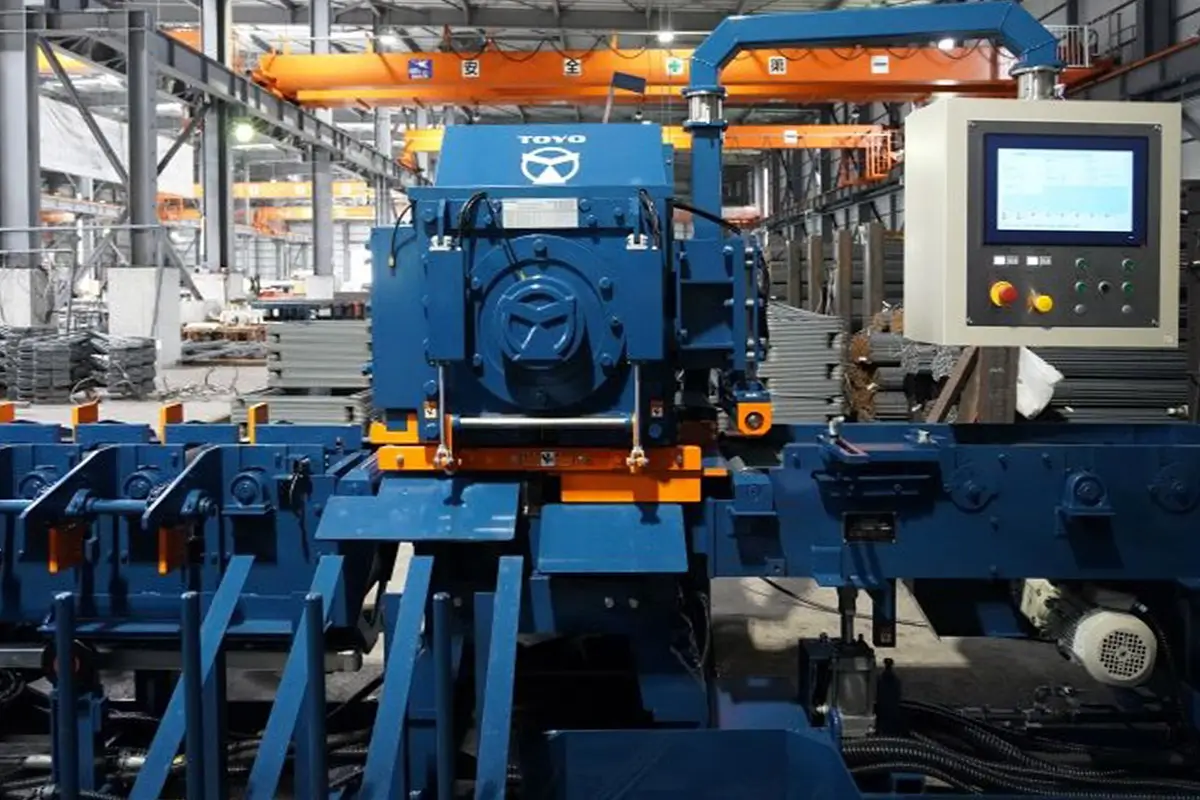

AUTOMATIC REBAR CUTTING MACHINE | TFC-300SSV ~FORTIS~

･ TFC-300SSV is an automatic rebar cutting machine capable of cutting and storing large quantities of rebar.

･ Cutting length can be set in 1 mm increments.

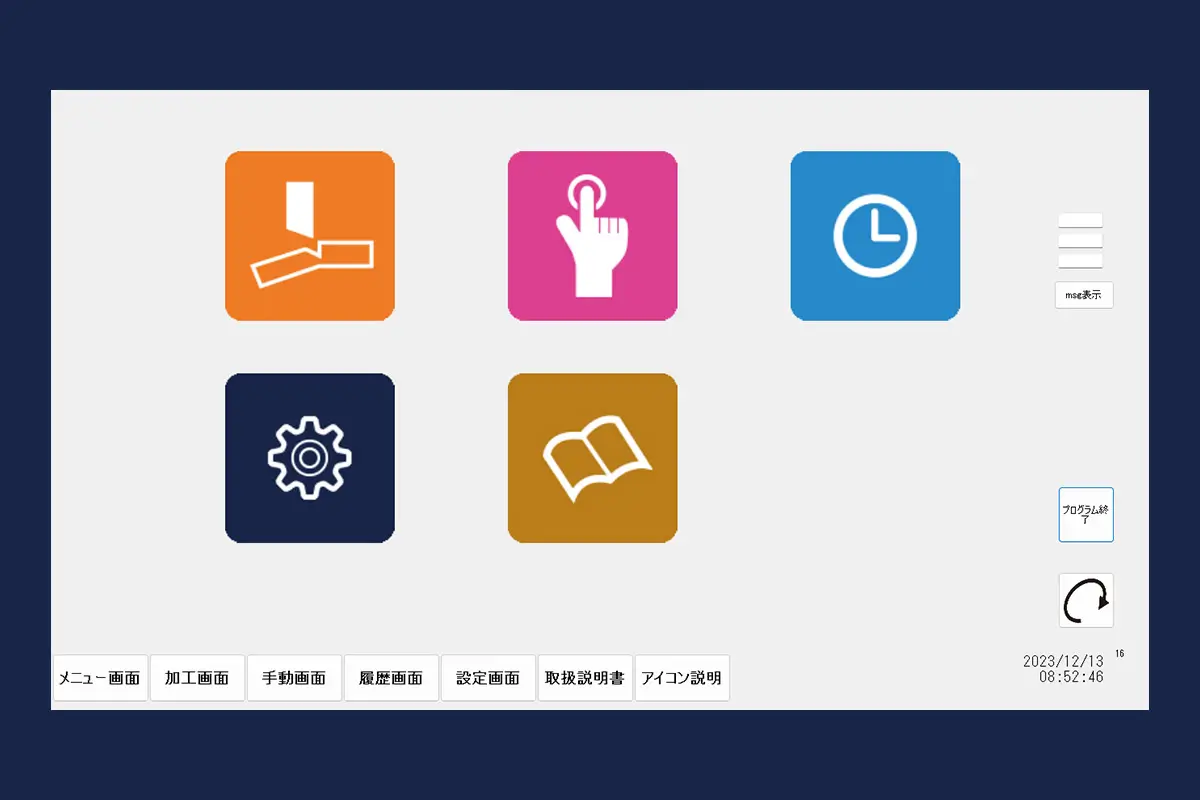

･ Dimensions can be easily configured via a user-friendly touch screen.

･ Cutting optimization and discharge locations for cut bars can be easily set.

･ Combination cutting of two different lengths can be performed from raw materials.

･ Three conveyor length configurations are available:
8 m (feed-out side) × 9 m (feed-in side),
10 m × 10 m,
12 m × 12 m.

･In combination with TAS-II or TS-V automatic sorting and feeding devices, TFC-300SSV can handle materials efficiently.

･ With a cutting blade width of 300 mm, the machine can cut up to twenty-five D10 bars simultaneously.

･ A number counter device is available as an option.

･ Compatible with high-strength rebar up to SD590 D51.

･ Supports automatic feeding of materials up to 900 mm (TFC-LA: up to 1,250 mm).

･ Equipped with a scrap material discharge unit.

･ A belt conveyor system is adopted to reduce transport noise.

･ QR code data reading device reduces processing setup time. (Optional)

･ TLINKS model (IoT devices).
