Point

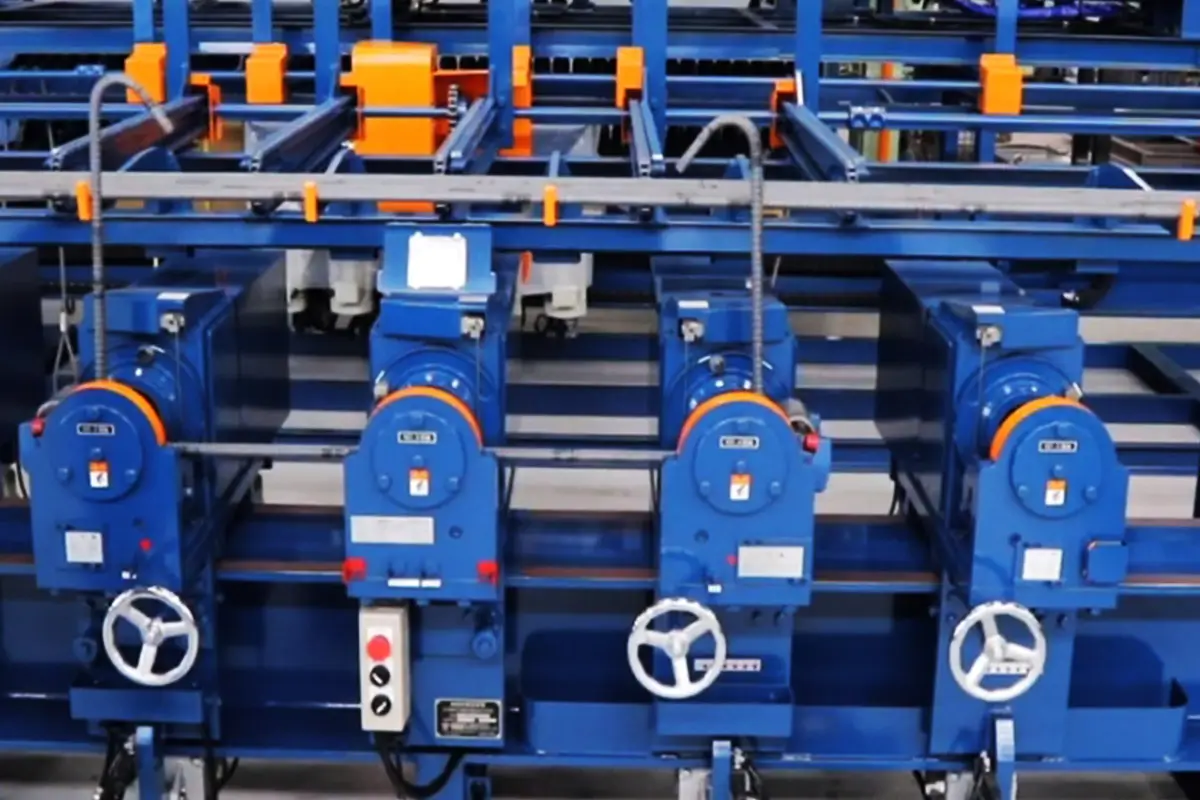

This automatic bender is designed for D10–D25 bars. It has four bending heads for fast stirrup forming, as well as a touch panel for easily setting the desired shape.Ideal for bending stirrups and double anchors.

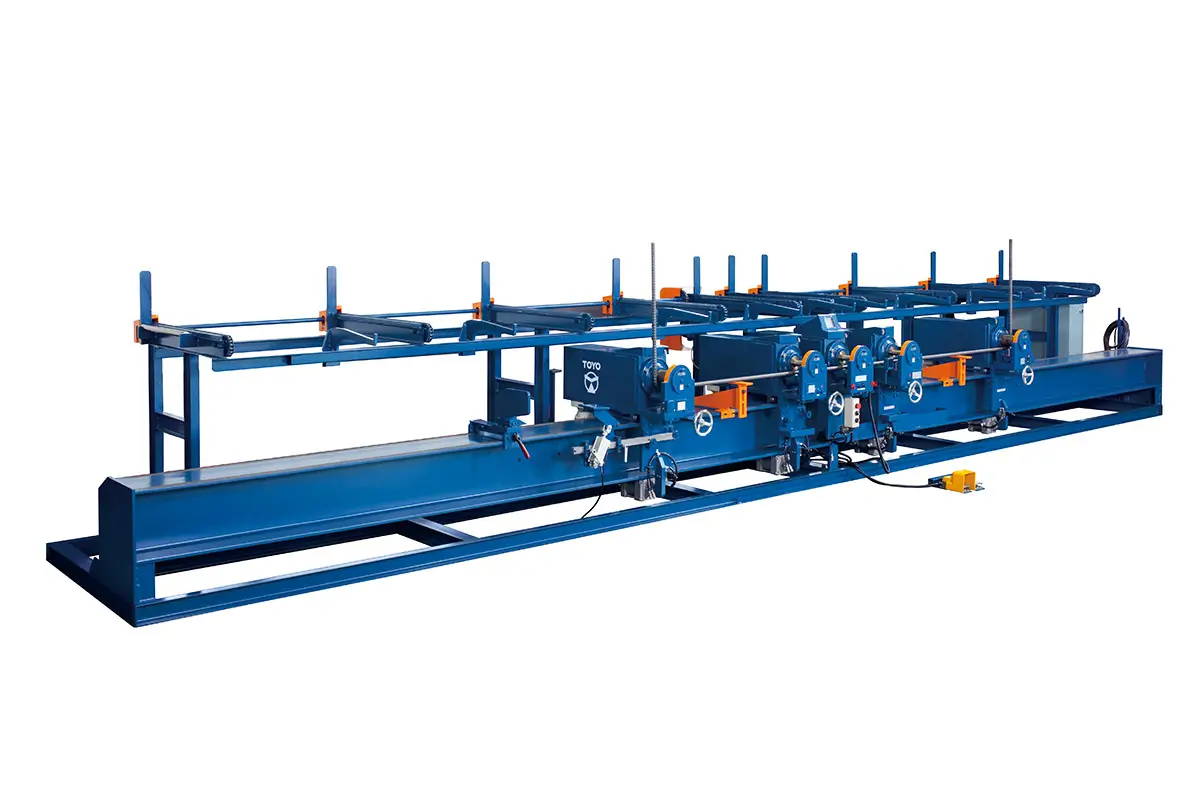

AUTOMATIC REBAR BENDING MACHINE | TBS-25-1

Product Features

･ TBS-25-1 is an automatic rebar bending machine exclusively designed for bending bars from D16 to D25.
*D10 and D13 can also be bent.
･ TBS-25-1 is ideal for bending foundation shapes, closed stirrups, stirrups with multiple angles, and double anchors.
･ TBS-25-1 is also useful for bending long lengths of D19-D25 for use in civil engineering work.

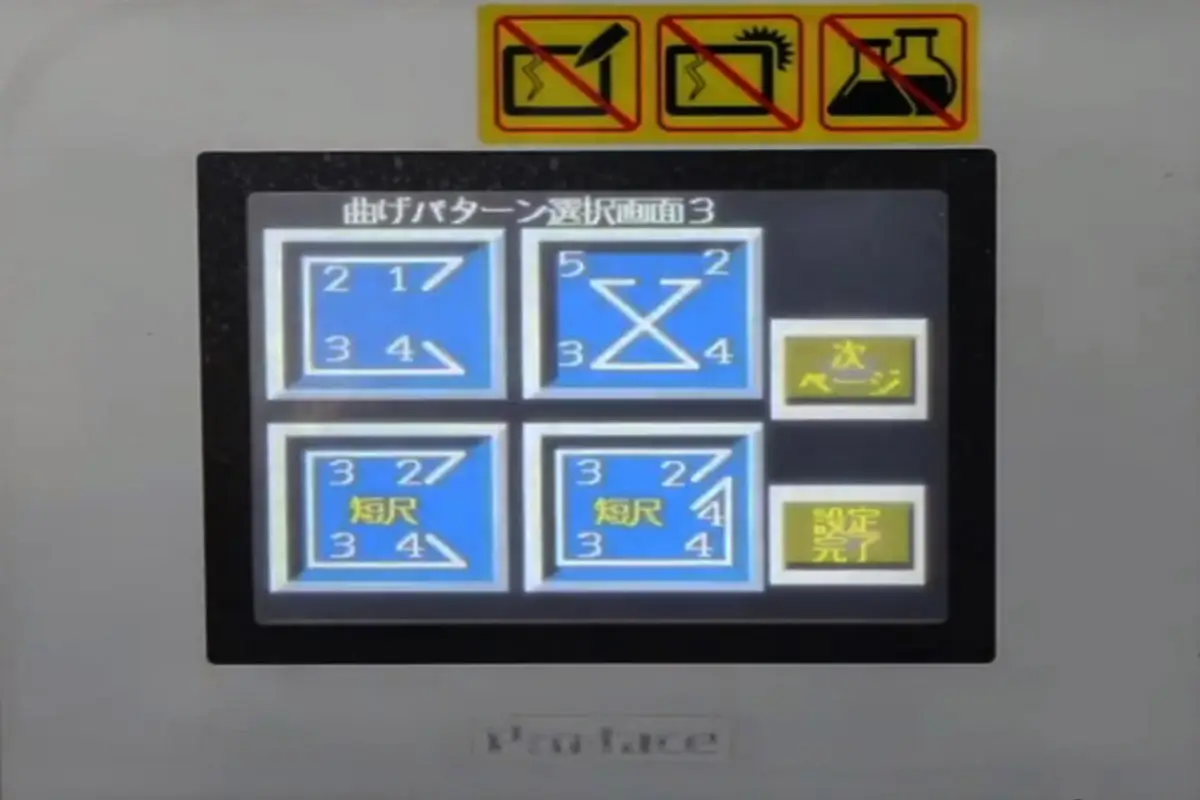

･ Shapes can be easily set using the user-friendly touch screen.
･ The touch screen is placed in the middle to raise working efficiency.

Specification

Model

TBS-25-1(10m type)

Capacity

SD345: D10-9pcs~D25-1pcs
SD390: D10-9pcs~D25-1pcs

Size

10,180×2,100×1,605㎜

Total weight

4,500㎏ (approx.)

Required breaker capacity

30A

Total motor capacity

9.75kW (including air-compressor 1.5kW)

Fulcrum roller

Optional 6D (Up to 90ﾟ)
