A standard rebar bender set angles with dials and can bend up to D16 (SD390). It is equipped with an auto-stepping function for bending angles.

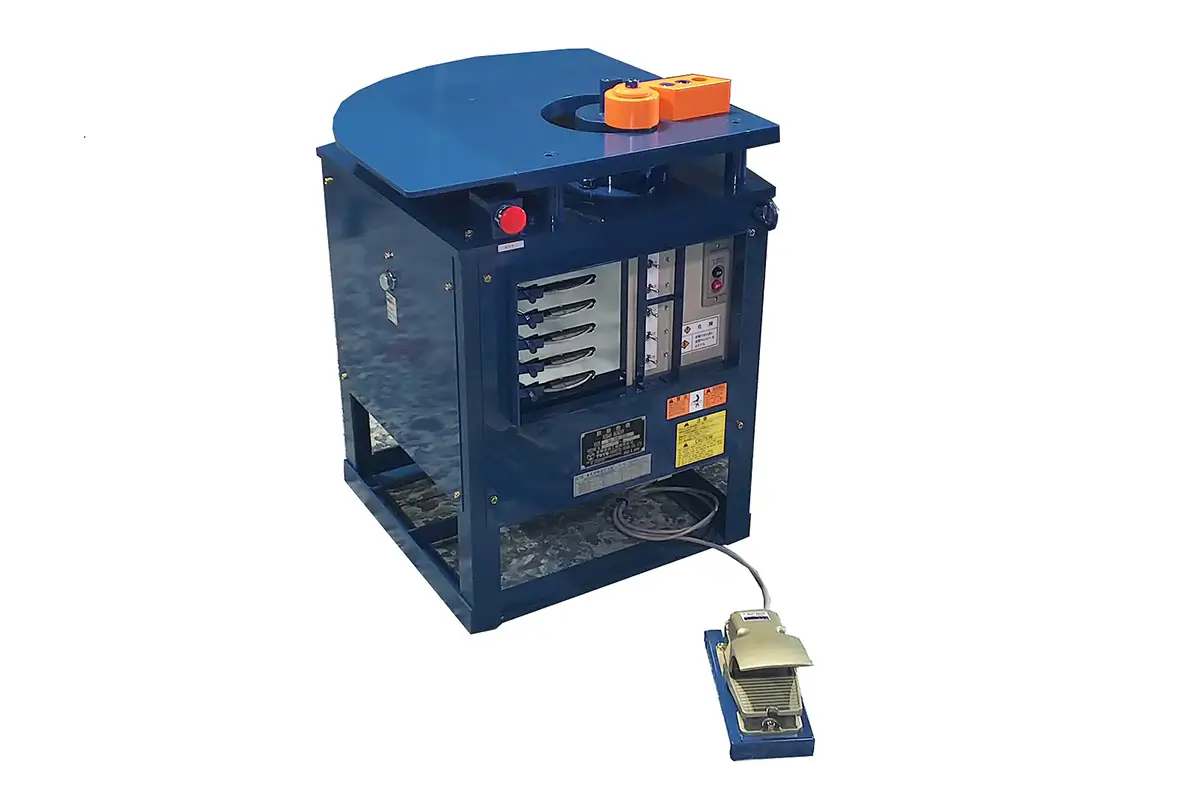

DIAL-TYPE REBAR BENDER | B-16-DR

Product Features

・ B-16-DR is suitable for bending multiple-angle shapes, such as closed stirrups and stirrups.
・ The angle can be set using dials.
・ It is possible to set a maximum of five angles.
・ With the automatic bending angle stepping function, it is not necessary to change the settings for multiple-angle bending.
・ The forced return function increases safety while bending.
・Without the arm receiving, the arm cannot be an obstacle when bending in the reverse direction.
・The additional workbench is optional.

Specification

Model

B-16-DR

Capacity

SD345: D10-4pcs~D16-1pcs
SD390: D10-4pcs~D16-1pcs

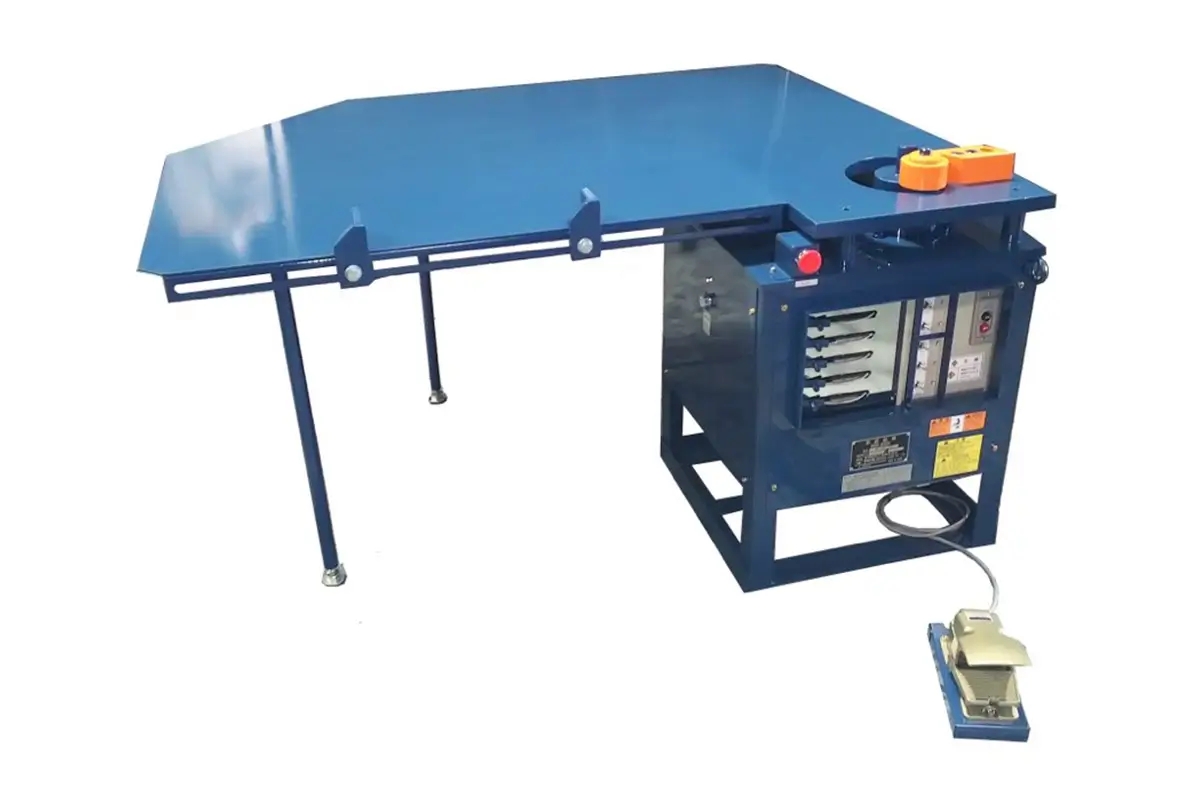

Size (equipped with an additional workbench)

1,525×1,375×830㎜

Total weight (equipped with an additional workbench)

260㎏

Size(equipped with an additional workbench)

620×640×830㎜

Weight (equipped with an additional workbench)

230㎏

Required breaker capacity

30A

Total motor capacity

1.5kW

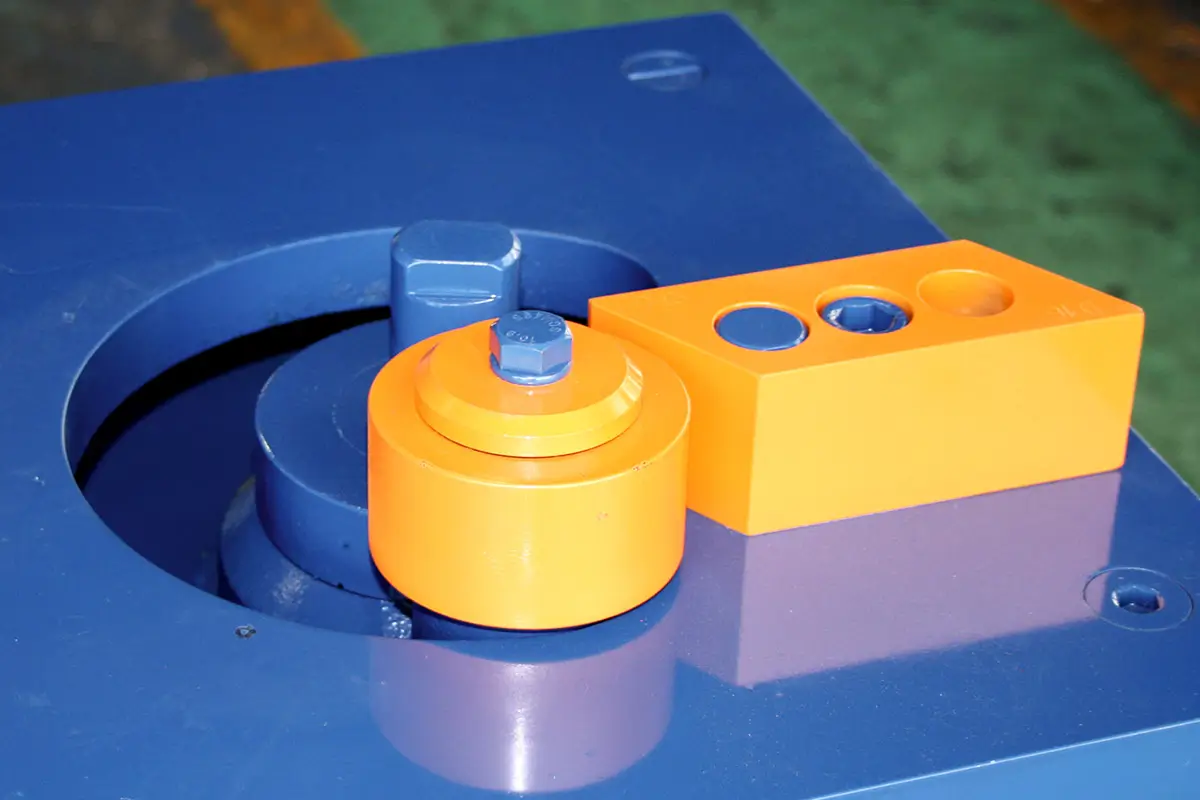

Diameter of fulcrum shaft

φ36
